BLUETTI Elite 400 + 500W Solar Panel review

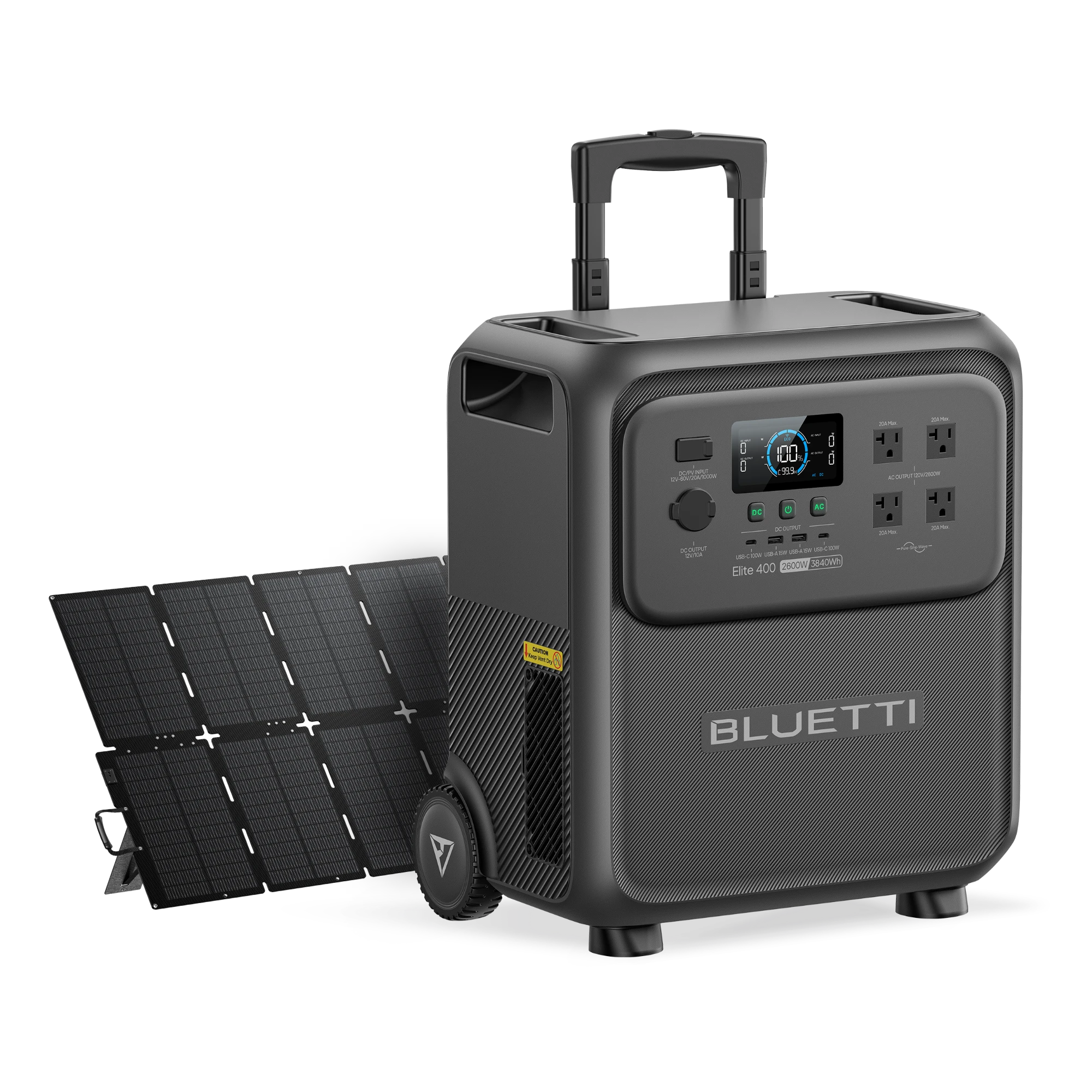

The BLUETTI Elite 400 + 500W is a specific U.S. package: one EL400 power station and one SORA 500 folding panel. It suits someone who wants the EL400’s larger battery and a substantial single-panel recharge option in the same order. It does not double the station, change its outlets, or include a pair of panels. The solar panel changes how you can replenish the battery; it does not increase the station’s 3,840 Wh storage or 2,600 W AC output.

The station remains the familiar EL400

BLUETTI’s exact U.S. option page labels the package “Elite 400 + 500W” and lists the EL400 station, one 500 W Solar Panel, an AC charging cable, a grounding screw, a 1.5 m MC4-to-XT60 solar charging cable and the EL400 user manual. The same base station is identified in the U.S. data as EL400, SKU EL400-US-GY-SPFUS-00. The selected package page exposes a product-option ID and variant number but no separate package SKU, so I would identify a listing by its full package name and not guess a new SKU.

The EL400 is a 120 V station rated at 2,600 W AC with 3,840 Wh of LiFePO4 nameplate capacity. BLUETTI’s U.S. manual lists four household AC receptacles, two USB-A ports, two 100 W USB-C ports and one 12 V/10 A car-style output. The EL400 has no TT-30 receptacle in that port list. If your RV connection requires a dedicated TT-30 outlet, this package is not made suitable by its panel; the Elite 300 has that connector, but its package and station ratings are different.

Capacity is stored energy, not guaranteed AC energy or a runtime promise. The right load is determined by both its continuous draw and startup behavior. The EL400’s advertised 3,900 W “Power Lifting” mode is limited in its manual to certain pure-resistive loads; it does not turn the station into a 3,900 W continuous source for motors or compressors. A refrigerator, pump or air conditioner should be checked against the station’s actual rated output and the appliance’s starting needs.

One SORA 500 panel, not the station’s full solar ceiling

The exact bundle list supplies one 500 W panel. BLUETTI’s U.S. panel product data names that model SORA 500 and gives its U.S. retail SKU as SORA500-UJ-BK-MD-SPFUS-00. The SORA 500 manual describes a fold-out, 12-panel design with MC4 connectors, a 12.9 kg (about 28.4 lb) panel weight and an unfolded footprint of roughly 100 by 45 inches. It is large enough to need a clear, stable patch of ground and a deliberate setup; this is not a small suitcase panel.

The EL400 manual allows up to 1,000 W of solar input across a 12–60 V DC, 20 A input. The SORA 500 manual lists 49.1 V open-circuit voltage and 40.92 V at its maximum-power voltage, both within the station’s voltage window for one panel. The supplied panel’s 500 W rating is also below the station’s 1,000 W ceiling. These are equipment ratings, not a promise that sunlight will deliver 500 W in a real yard. Shade, cloud, panel angle, season and heat all affect harvest. The panel guide says to position it toward direct sunlight, avoid partial shade and keep connectors dry.

There is an unresolved detail in the panel documentation: the English/German SORA 500 manual lists 500 W maximum output, 40.92 V output voltage, 10.22 A maximum output current, 49.1 V open-circuit voltage and 13.31 A short-circuit current. The listed voltage and current figures do not make a clean basis for sizing an added array. For this single-panel package the station’s 20 A current limit is not approached by the manual’s stated panel currents, but I would not use this discrepancy to recommend another panel or a wiring arrangement. The package contains one panel, not the station’s full 1,000 W solar capability.

Plan for the handling as well as the wattage

The EL400 alone weighs 39 kg (85.98 lb). Its wheels and pull handle help when rolling it over a level floor, but do not remove the lifting problem at stairs, thresholds, a vehicle tailgate or loose ground. The SORA 500 is a separate 28.4 lb component. The complete package weight is not published; together these named components already add to more than 114 lb before cables and packing. The finder’s weight question is station-only, so a buyer who must carry everything at once should treat that answer as only part of the decision.

The panel manual describes IP67 protection and says light rain is acceptable, but it also says the electrical terminals must not be used wet. Stop using it if rain reaches the connections, dry the parts before storing, and avoid strong wind that could topple the unfolded panel. The manual does not position this as a permanent roof-mounted panel. These setup and storage limits matter more than the impressive nameplate wattage if you lack space to deploy it safely.

When the 500 W option is the right answer

Choose this package when an included panel is essential, one 500 W panel is enough for your plan, and the EL400’s 3.84 kWh / 2.6 kW 120 V station fits your loads. A higher minimum for supplied solar wattage will rule it out; a request for TT-30 should also rule it out. If you only need the EL400 station, the standalone version avoids paying for a panel you will not use. If a 350 W panel is enough, the separate EL400 + 350W option may be easier to move and deploy, though its panel is still a 32.4 lb component. If the RV plug is the deciding need, compare the EL300 + 350W package instead and accept its lower station capacity and output. None of these choices changes the basic rule: check the exact loads, the connector, and the panel’s placement before treating a nominal watt rating as your real operating plan.
