EcoFlow TITAN 5000 Classic + Smart Home Panel 10 (120V) review

This bundle is a 120 V home-circuit design, not a split-phase shortcut

The exact U.S. Classic option is titled “TITAN 5000 Classic + Smart Home Panel 10 (120V),” SKU TTC-SHP10-120, variant 55913028943945. EcoFlow's Classic product page marks it unavailable in the October 25, 2026 capture. This is a date-specific observation, not a live inventory statement. The option includes the Classic station and a 120 V Smart Home Panel 10 pairing; it is separate from the Classic-only offer and from the solar-panel or extra-battery configurations.

The Classic is the clear voltage outlier among these TITAN panel bundles. EcoFlow lists 5,017.6 Wh nameplate capacity, 4,000 W rated AC output, 120 V output, and up to 3,200 W solar input. It is not the 120/240 V TITAN 5000 or TITAN 5000 Plus. If the emergency plan contains a 240 V pump, range, well system, or other 240 V load, this bundle should be screened out rather than treated as a smaller version that can be adapted later. The Smart Home Panel page lists the Classic arrangement as 120 V and does not describe AC coupling for this pairing.

What the ten-circuit panel contributes

The Smart Home Panel 10 can select up to ten circuits and provides app-based controls and whole-home energy monitoring, according to EcoFlow's U.S. panel page. “Whole-home monitoring” is not the same as whole-home backup. During an outage, backup is for connected selected circuits, and the Classic's 4,000 W station rating remains a limit on the plan. Check each priority circuit, appliance start behavior, and simultaneous demand with the person designing the installation. EcoFlow lists a changeover time of up to 20 ms for a Smart Home Panel 10 system; it is a manufacturer claim, not a hands-on or lab result and not proof that every connected electronic device will remain unaffected.

The panel changes the suitability question from “which outlet can I plug into?” to “which fixed household circuits, service layout, and installation scope will this system support?” It does not turn the station into a substitute for a compatible electrical design. The captured package title identifies a 120 V panel variant, but the exact labor, commissioning, and installed system weights are not established in the option page data. Review the provider's current site-survey and installation scope, and do not infer that an illustrated bundle includes every conductor, breaker, or service component required at a particular home.

Why some homes will prefer Classic—and others should pass

Classic may be the focused choice when the backup list consists of compatible 120 V circuits, its 4 kW output matches their combined use, and a panel-based system is desired. It is lighter as a station body than the TITAN 5000 and Plus: EcoFlow lists 102.5 lb. That is still a large unit, and it is not the weight of the full panel package. The station also offers an RV-style TT-30 receptacle and one USB-C port rated at 60 W in its published configuration; that can help with certain direct-use needs but does not create 240 V capability.

Choose the regular TITAN 5000 or Plus when 240 V is essential. The standard TITAN is rated at 7,200 W with a 4 kW solar ceiling; Plus keeps the 7.2 kW battery output while raising its listed solar input to 8 kW across two inputs. The Classic's 3.2 kW solar ceiling is lower, but that difference is not important to a household with no array capable of using it. Conversely, a large array does not by itself compensate for 120 V-only output or increase the Classic's 4 kW inverter rating.

How the finder should treat this exact configuration

Requiring 120 V and an included Home Power Panel or Smart Transfer Switch should bring the Classic panel bundle into consideration. Requiring 240 V should rule it out; an unknown 120/208 V service topology must also remain unresolved rather than pass. A ten-circuit Smart Panel minimum fits the manufacturer listing. An advanced minimum of 3,200 W solar input matches the Classic's ceiling; a higher threshold should direct shoppers to a different model or a verified alternative. Capacity remains the base 5,017.6 Wh because no expansion battery is named in TTC-SHP10-120.

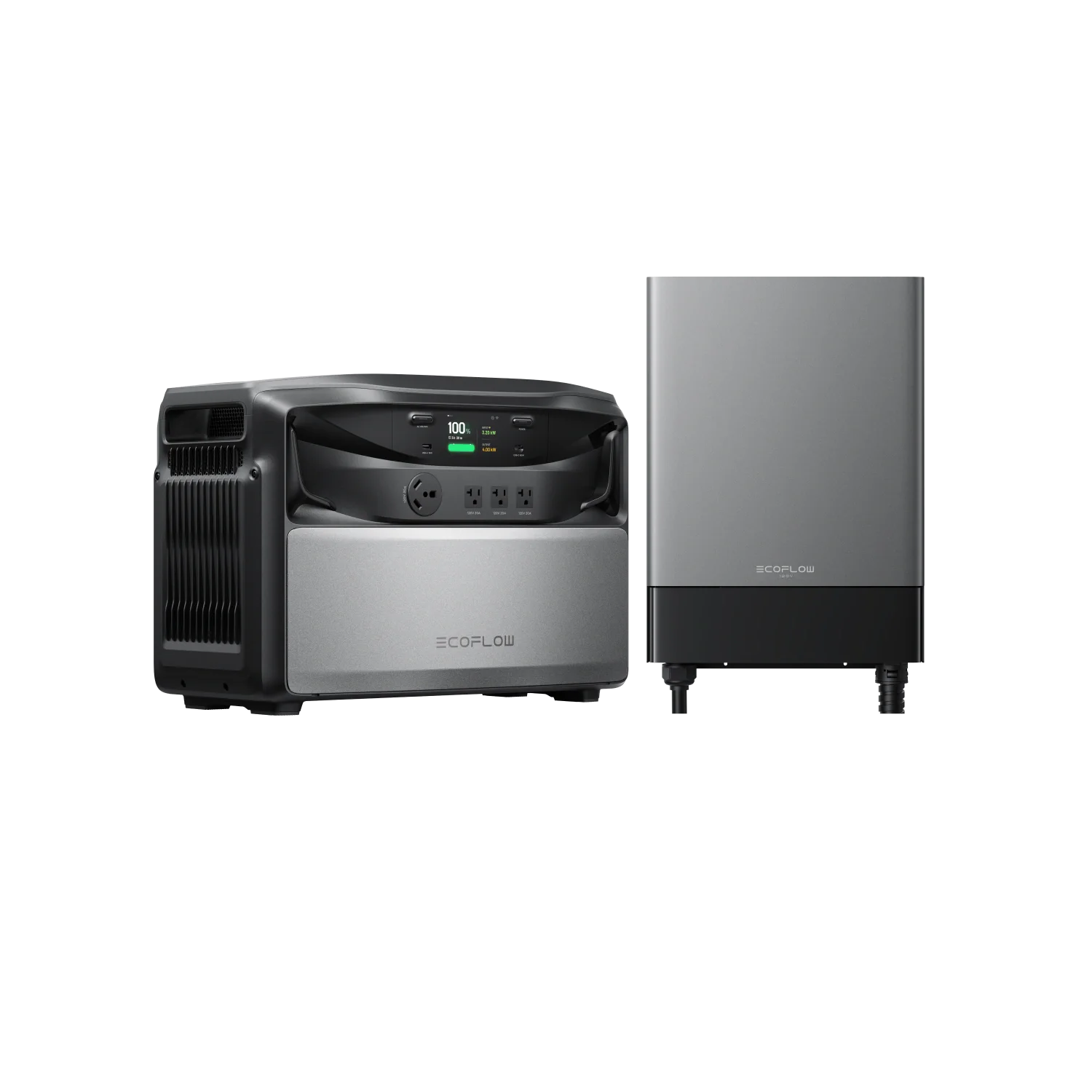

The archived option image is EcoFlow's own product illustration of the Classic paired with the 120 V panel, not a photograph of an installation. Confirm present availability, exact panel variant, current installation offering, and compatibility for the home's selected circuits before purchase.

Bottom line

TTC-SHP10-120 pairs Classic's 120 V-only, 4,000 W, 3,200 W-solar-input station with a ten-selected-circuit panel configuration. It is a plausible route for a deliberately limited 120 V backup design, not an answer to a split-phase or 240 V requirement. The body alone is 102.5 lb and the total system weight and service work are not stated. Check current package and installation facts rather than assuming the marketing image or a ten-circuit label represents an installed, whole-house solution.
