EcoFlow TITAN 5000 Plus + TITAN Battery + Smart Home Panel 10 (240V) review

One added TITAN battery changes reserve, not inverter size

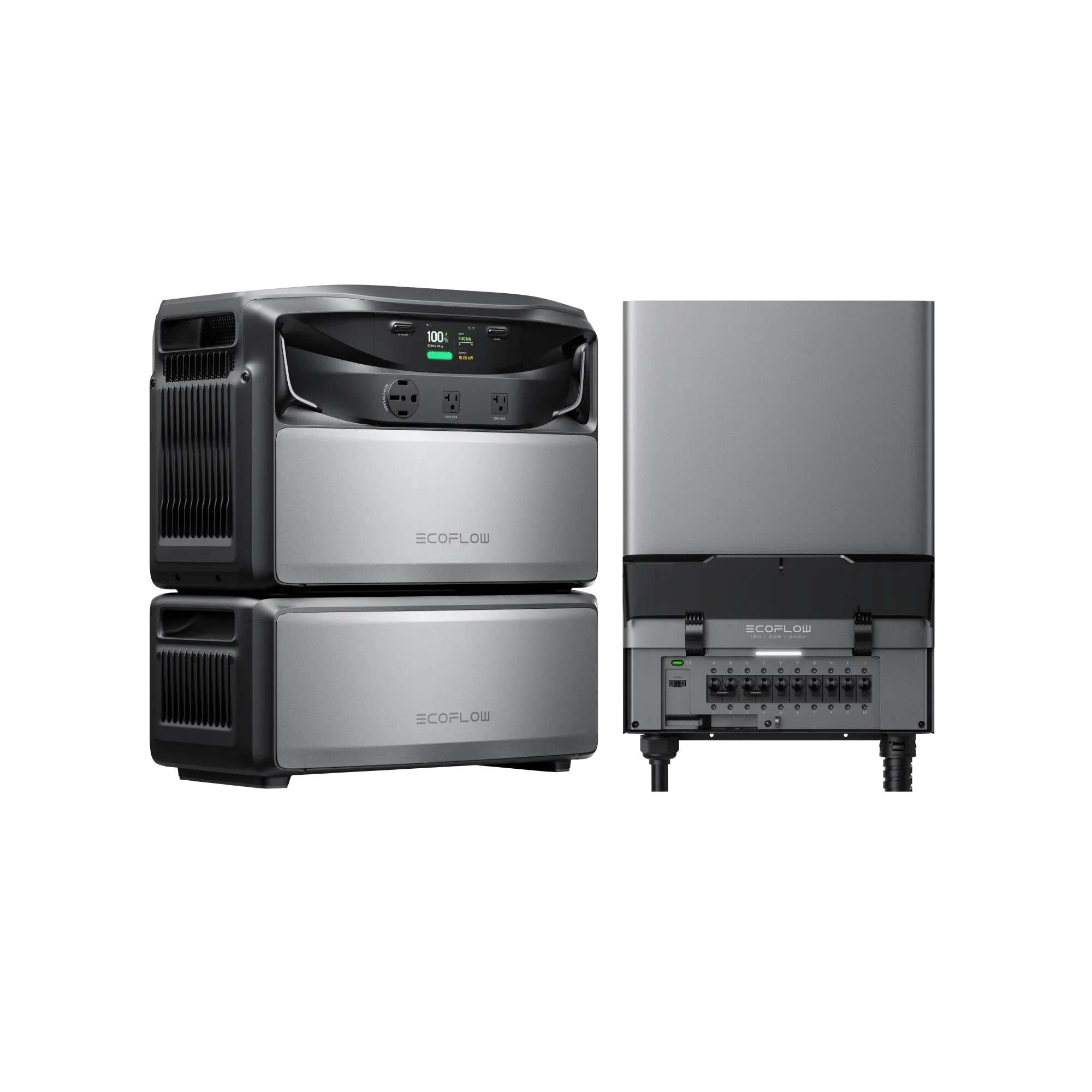

The EcoFlow U.S. product array lists “TITAN 5000 Plus + Smart Extra Battery + Smart Home Panel 10 (240V),” SKU TTP-EB-SHP10-240, variant 55913000075337. The exact offer appeared unavailable in the October 25, 2026 page snapshot. The title identifies a Plus station, one extra TITAN battery, and the 240 V Smart Home Panel 10 configuration. The image linked to this option visually shows one added battery and the panel, but it remains a manufacturer illustration rather than a tested installation photo.

The Plus station itself is rated 7,200 W continuous AC on battery and lists 120/240 V split-phase output. EcoFlow lists the station at 5,017.6 Wh and the matching TITAN battery at another 5,017.6 Wh. Together they provide 10,035.2 Wh of nameplate battery capacity by arithmetic. That sum is useful when comparing capacity thresholds, but it is not a measured AC energy total, usable capacity guarantee, or runtime prediction. Inverter efficiency, reserve, temperature, load behavior, and settings affect energy available at the outlets.

What a single expansion battery is—and is not

The benefit is additional stored energy for an outage plan that needs longer duration between recharges. The added battery does not raise the station's 7,200 W battery-only AC rating, change the 120/240 V output type, or create more AC circuits by itself. For a household plan, the included SHP10 provides the selected-circuit path; EcoFlow says the panel can select up to ten circuits and offers whole-home energy monitoring and app management. That doesn't mean that the whole house is backed up: only the connected selected circuits receive the backup path, subject to the connected loads and the station's limits.

Solar can replenish a larger reserve, but this bundle's Plus station lists up to 8,000 W of PV input across two inputs; the title does not include solar panels. The maximum input number is not a promise about solar harvest, nor does it prove that an arbitrary array is compatible. The site design must remain within the manufacturer's voltage and current limits. EcoFlow's product material discusses a higher output when solar and battery power are combined; keep that distinct from the 7.2 kW battery-only rating when sizing a critical-load plan.

The station body is listed at 121.3 lb and a TITAN battery at 82.7 lb. Their published component weights total 204 lb, but that is not an installed system, shipping, or kit weight and excludes the panel and any other materials. It is a useful warning against planning frequent relocation. A fixed, professionally installed backup arrangement is a better fit than a mobile camp setup.

Choose this middle capacity only if its extra unit is enough

Compared with TTP-SHP10-240, this offer adds one battery and therefore approximately doubles the nameplate capacity while leaving the Plus station rating and SHP10 topology intact. Compared with TTP-EB-2-SHP10-240, it has one fewer extra battery: that reduces storage and physical footprint, but the two-battery package is the option to investigate when duration is more important and space, support, and installation can accommodate it. If a 240 V load is not required, reconsider whether a panel-connected 120/240 V system is the right design at all; a station-only package can be simpler, while Classic is 120 V only and has a lower output ceiling.

In the ordinary matcher, require 240 V and an included Home Power Panel/Smart Transfer Switch to find the exact type of configuration. An advanced minimum capacity of 10,000 Wh should admit this package; a request for a higher threshold should not. A 10-circuit minimum is supported by the listed SHP10 pairing. Requiring the Classic's TT-30 receptacle or a 120/208 V panel topology should not be treated as satisfied. The actual selected output circuit, appliance startup demand, and load duration must still be reviewed.

Bottom line

TTP-EB-SHP10-240 is the one-extra-battery version of the Plus-and-panel system. Its clear difference is a 10,035.2 Wh nameplate total; it does not supply a larger battery inverter or a named solar array. The captured offer was unavailable, no live stock is claimed, and total package/installed weight, exact included wiring and installation scope remain unknown. Confirm all included equipment and have a qualified installer establish the actual circuit and compatibility plan rather than assuming the bundle title alone settles those details.
