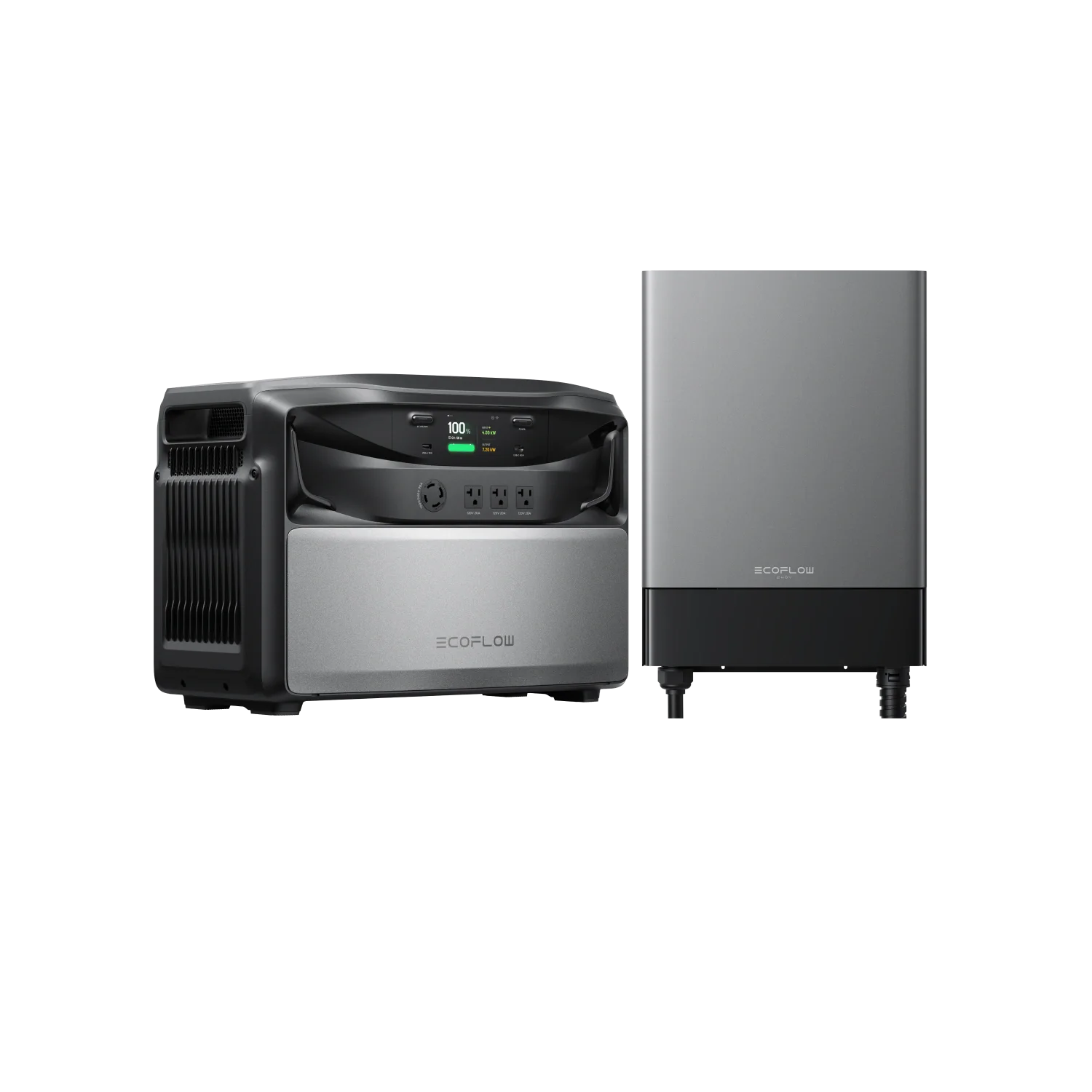

EcoFlow TITAN 5000 + Smart Home Panel 10 (240V) review

This option joins the 5 kWh TITAN with a home-circuit panel

The EcoFlow U.S. product page lists the exact selection “TITAN 5000+ Smart Home Panel 10 (240V),” SKU TT-SHP10-240, variant 55912975204425. The selection was marked unavailable in the manufacturer page capture dated October 25, 2026. That is a dated page observation, not a live stock check or a reason to erase the configuration. This review is for the station-and-panel selection, not the standalone EFTITAN-US station, the TITAN Battery bundle, or either portable-solar-panel package.

The base TITAN 5000 is listed at 5,017.6 Wh nameplate capacity, 7,200 W rated AC output, split-phase 120/240 V, and up to 4,000 W of solar input through one PV input. EcoFlow's product page describes the SHP10 as a system for selecting and monitoring circuits and lists this pairing for up to ten circuits. Its Smart Home Panel 10 product page describes app control and whole-home energy monitoring; during an outage, backup applies to the circuits actually selected and connected, not every circuit automatically.

Why the panel changes the buying decision

This is a fixed-home-backup path, not a larger portable battery. The panel is the difference between this option and the otherwise similar TITAN 5000 station-only offer. It can make sense when the plan calls for a professionally designed connection to selected household circuits, the loads need both 120 V and 240 V, and the buyer is prepared to resolve compatibility, service topology, installation, and commissioning before choosing equipment. The listing's “10” is a maximum selected-circuit count, not a promise that ten circuits of any size can run together. The 7,200 W station rating and each appliance's starting and continuous loads still matter.

EcoFlow describes a transfer time of up to 20 ms with the Smart Home Panel 10. Treat this as a manufacturer claim for an installed system, not as a test result or a guaranteed interruption-free experience for every appliance. A buyer who cannot tolerate any interruption should ask the equipment makers and installer about the actual loads and transfer behavior. Do not assume that a panel in the package means the house is wired, that a site visit or electrical work is included, or that the listed title answers every compatibility question. The public product page describes installation service steps, but the captured offer does not establish this option's exact labor scope, price, or schedule.

Choose it against the two closest TITAN alternatives

The TITAN 5000 is a middle choice when 120/240 V backup and a 4 kW PV ceiling are enough. TITAN 5000 Plus keeps the same 7,200 W battery-only rating and the split-phase option, but its two solar inputs accept up to 8,000 W total; its page also describes a higher combined solar-and-battery power figure, which must not be mistaken for battery-only output. The Classic is a different 120 V-only branch, rated at 4,000 W with a 3,200 W PV ceiling. It is not the right answer to a hard 240 V appliance requirement. If a transfer panel is not part of the plan, compare the TITAN station-only configuration rather than paying attention to a package title alone.

The TITAN 5000 body is listed at 119 lb. That is already a poor match for someone who expects frequent one-person lifting; the page does not establish a total installed system or shipment weight for this selected panel option. The Smart Home Panel is not a compact add-on that turns the station into a campsite battery. Think through where the equipment will live, which loads truly need backup, and how the energy will be replenished during an extended outage.

Questions that should decide the shortlist

In the ordinary finder, selecting 240 V should favor the split-phase TITAN options and remove the 120 V-only Classic. Requiring an included Home Power Panel or Smart Transfer Switch should then distinguish this exact TT-SHP10-240 configuration from the base station and solar bundles; a loose plan to purchase a panel later is not the same answer. An advanced requirement for ten Smart Home Panel circuits is supported by the manufacturer's listed pairing. A 120/208 V service requirement remains unknown for this model and should not be treated as a pass.

For capacity, this offer contains the base 5,017.6 Wh station; no extra TITAN battery is named. If a long outage requires more stored energy, compare an explicitly battery-included TITAN bundle and verify the actual maximum system design. Do not infer usable AC energy or runtime by dividing the nameplate capacity by an appliance's watts: conversion losses, load cycles, reserve settings, and operating conditions affect what reaches a load.

Bottom line

TT-SHP10-240 is the TITAN 5000 route to a manufacturer-listed 120/240 V, selected-circuit home-backup system, not a substitute for an installation plan. Its attraction is the included Smart Home Panel 10; its limits are the unchanged 5 kWh base storage, 7.2 kW station output, 4 kW PV input, substantial station mass, and the need to confirm service and installation details. The exact page snapshot did not show the offer available. Confirm the current package and obtain a compatible, written installation plan before treating this configuration as a purchase option.
