Jackery Home Backup Kit 5000 Plus (20 kWh) review

Jackery Home Backup Kit 5000 Plus (20 kWh) review

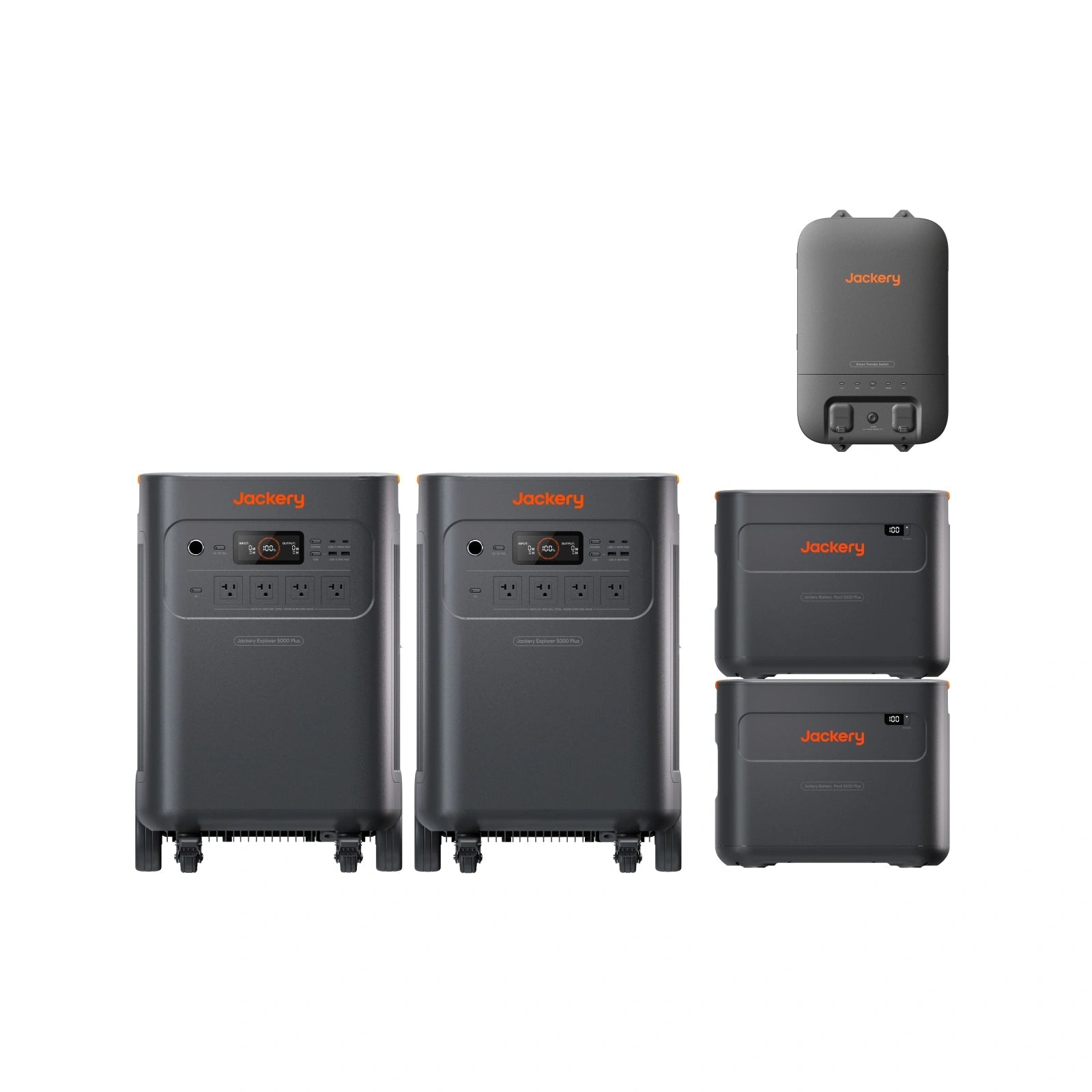

SKU 60-505000-US00057 is a two-station system package, not one oversized power station. Its listed components are two Explorer 5000 Plus stations, two Battery Pack 5000 Plus units and one Smart Transfer Switch, with the associated charging and expansion cables. Each station and pack has a 5,040 Wh nameplate, so the four batteries total 20,160 Wh. The paired system's output and installation arrangement are separate from this capacity sum. Each JE-5000A is an independent station unless connected in the documented paired mode.

Two distinct operating plans

One station with its included battery pack is a 120 V plan with 10,080 Wh nameplate storage and up to 7,200 W maximum station output; the other station remains separate. The maker also documents a paired split-phase plan using both stations for 240 V home backup, rated at 14,400 W total. This is not equivalent to plugging two units into the same load. Paired operation requires the right connection equipment, configuration and Smart Transfer Switch arrangement. The paired surge ceiling is not inferred here, and neither is the sum of two single-station solar ceilings. Jackery's manual says AC wall charging is not supported while the stations are linked; confirm the manufacturer's recommended recharge procedure before planning how to replenish the system between outages. The kit does not include solar panels.

This distinction should guide matching. If your essential loads need 240 V, a one-station 120 V plan is not enough. If you only need several 120 V appliances, the paired arrangement may be unnecessary complexity. List the loads, starting demands, circuits, expected overlap and target duration. The 14.4 kW total is a system rating, not an output promise at every receptacle or at each station independently.

Transfer switch and installation

The included Smart Transfer Switch is not a manual transfer switch, nor a plug-in household adapter. Jackery's documentation describes up to 12 120 V circuits or 6 240 V circuits. The exact configuration depends on service and installation, and the manufacturer requires professional electrician work. Before ordering, have an electrician verify the home's panel, neutral/ground arrangement, service type, circuit selection, load distribution, wiring route and local code. A product page cannot establish your home's compatibility. A switch does not mean every circuit will be supported or that unlimited loads can run simultaneously.

The switch's automatic behavior depends on the documented and enabled mode. Separately, a JE-5000A's online UPS provides 0 ms only on NEMA 5-20 outputs, up to 3,600 W; ordinary backup UPS transfer is under 20 ms. Do not transfer those figures automatically to the Smart Transfer Switch or treat them as a guarantee for every connected device. Equipment that cannot tolerate a brief interruption needs its own suitable UPS and real compatibility testing.

Storage, weight and climate

A JE-5000A weighs about 134.5 lb; a JBP-5000A adds about 81.6 lb. This kit contains two of each plus a switch, so it is a set of heavy components rather than a hand-carried backup battery. The product listing does not provide a meaningful combined package weight. Plan delivery, handling, floor space and a dry indoor location. The station measures 16.5 by 15.5 by 25 inches and uses wheels, but they do not solve stairs or doorways.

The manual specifies charging from 0°C to 45°C and discharge from -15°C to 45°C; it reduces output to 3,600 W in the -15°C to -10°C band. It says indoor use and warns against rain and humidity. The system's 20,160 Wh is nameplate energy, not a guaranteed amount available at AC outlets. Conversion losses and load behavior affect energy delivered. No home runtime or refrigerator-duration test is claimed.

Each station's LiFePO4 battery has a published 4,000 cycles to at least 70% capacity. The Battery Pack 5000 Plus is a matched accessory, and the station supports up to five such packs per unit. That capability does not make the inverter stronger. This kit already includes one pack for each station. Additional packs would be separate components and should be evaluated with the exact connection plan rather than added to the kit headline.

Who should consider less system?

This package is for a household with a documented 120/240 V backup need, an electrician-approved circuit plan and enough load demand to justify two stations and two packs. Compare the 10 kWh Smart Transfer Switch package when a single station and one pack are sufficient; it avoids the paired system and has half the kit's nameplate storage. Compare the switch-only package if 5,040 Wh is enough. The 500 X solar packages include panels but have a separate current-compatibility caveat; this Home Backup Kit has none. A small cabin or a few outage essentials may be served better by one lighter 1–2 kWh unit. Choose after reviewing the real load schedule and installation, not just the highest combined Wh number.

Sources: Home Backup Kit selected package listing, JE-5000A manual, JBP-5000A manual, and Smart Transfer Switch information.
