Pecron dual E3600LFP 240V Connect Box with eight PV300 panels without trolley review

Pecron · paired 240 V system · eight-panel bundle

Pecron dual E3600LFP 240V Connect Box with eight PV300 panels review

The exact U.S. option is SKU 2xE3600LFP+8*300W+240V-BOX, selected without a trolley. The manufacturer’s option title names two E3600LFP stations, its 240V Connect Box and eight 300 W PV300 panels. Two 3,072 Wh E3600 nameplates total 6,144 Wh; Pecron states that the two-station series kit provides 7,200 W at 240 V. Eight 300 W panel labels add up to 2,400 W of panel nameplate rating, not a guaranteed charging rate. The archive marked this option unavailable at capture time, so check the current manufacturer selection for availability and contents.

A specific answer for 240 V loads

The strongest reason to consider this package is the linked output: it is not simply one E3600LFP with a larger number attached. Pecron’s product description explicitly says that two E3600LFP stations plus the 240 V series connection kit produce 7,200 W at 240 V, and its Connect Box page separately lists the two-E3600 combination as supported. A single E3600LFP is rated at 3,600 W / 120 V. If a workshop tool, pump or other load actually requires 240 V, the paired configuration is relevant; if all essential appliances are 120 V, a single-station option is usually easier to place and understand.

The 7,200 W figure is continuous AC rating stated for the paired kit, not a promise that every 240 V appliance will start or that a house can be connected automatically. The linked setup’s surge rating, outlet standard, transfer-switch inclusion and installation procedure are not established in these saved sources. The product option does not list a transfer switch. Confirm the appliance nameplate, starting current, Connect Box outlet and any electrical installation requirements with the manufacturer and a qualified electrician.

Eight panels add a package distinction, not a proven array plan

The offer is materially different from the no-panel pair because its exact title and SKU identify eight PV300-named, 300 W panels. Their arithmetic total is 2,400 W of nameplate panel rating. That number describes the panel bundle and must not be substituted for the E3600’s solar input ceiling or a real-world harvest estimate. The E3600 manual lists two XT60 solar inputs per station, each with a published limit, but the selected eight-panel bundle does not document how the panels should be divided across two stations, whether the exact leads are supplied, or whether all eight can be used together at their rated conditions. The product image is an illustration, not evidence of wiring compatibility.

Accordingly, the facts kept for this option separate three things: two E3600 stations are included; eight PV300-named panels are listed; and the paired system’s panel wiring/combined charging behavior remains unknown. A basic “panel included” preference can distinguish this bundle from the base 240 V pair. A hard requirement that the whole array be confirmed to work together should not be treated as met. Ask for the wiring diagram, open-circuit and operating-voltage/current specifications, adapters and station-by-station connection plan before building around the package.

Energy, placement and transport

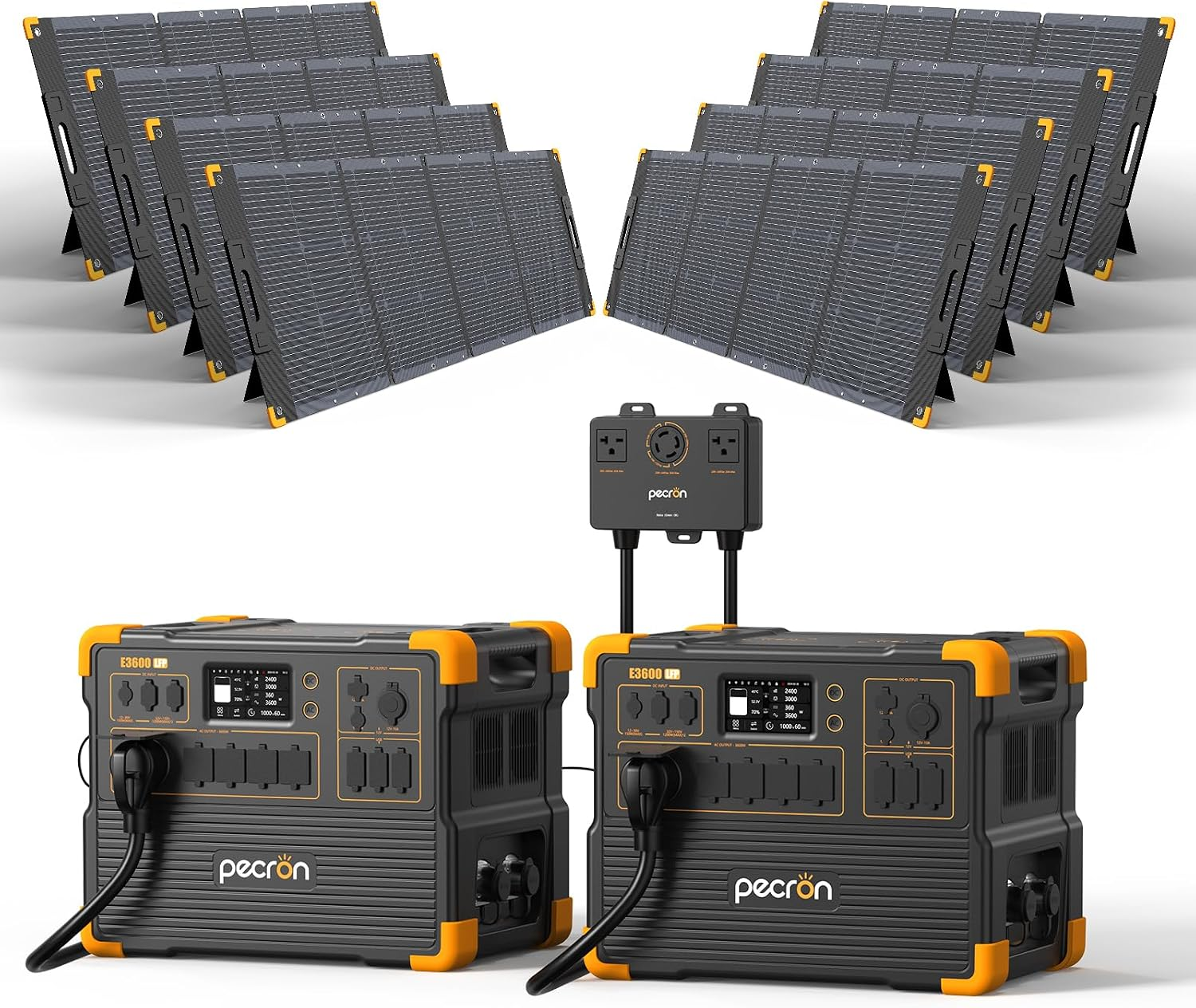

The two E3600 units’ 6,144 Wh sum is battery nameplate capacity, not measured or guaranteed AC energy at the outlet. It cannot yield a dependable runtime without the load profile and conversion losses. Nor does the eight-panel total mean that the battery recharges at 2,400 W in ordinary conditions. Solar availability, orientation, weather, electrical limits and the actual connection arrangement all matter. Pecron lists each station at roughly 79 lb; this exact SKU does not include a trolley. A separate with-trolley selection exists, but its cart model, load rating and complete package weight are not established. The image for this no-trolley option shows the two stations, Connect Box and panel bundle; it does not show a trolley.

When questionnaire answers should include or reject it

Choose 240 V only if the load needs that voltage. Keep the required AC threshold at or below Pecron’s stated 7,200 W continuous rating, and use the 6,144 Wh base nameplate sum only as a first comparison—not as usable runtime. If panels in the box are essential, this selected offer lists eight PV300-named panels; if a confirmed whole-array charging configuration is essential, the available evidence is insufficient and the option should fail that condition. A panel-in-box answer and a solar-input capability answer are not the same as proof that this exact eight-panel array can feed the linked setup.

For a 240 V load without a panel-package requirement, compare the base dual E3600LFP/Connect Box option. For a solar-first system, compare configurations with a published station-specific array diagram and compatible leads. For 120 V loads, the single E3600 or another lighter system may avoid the two-station footprint and installation questions. This bundle is most relevant to buyers who need the documented 240 V pair, want the named eight-panel package, and are willing to verify the panel hookup before depending on it.

Bottom line

PECRON’s paired 240 V output and the option’s eight-panel contents are supportable facts. The panels’ combined use with the linked pair is not. The package can be useful when those exact distinctions fit your project, but the 2,400 W panel sum should remain a nameplate figure until PECRON confirms the full solar circuit and supplied cables.
