Pecron E1500LFP V3 with 2× 200 W panels review

Pecron · E1500LFP V3 with two 200 W solar panels

Pecron E1500LFP V3 with 2× 200 W solar panels review

This is the U.S. E1500LFP product-page option titled “E1500LFP 2*200W Solar kit,” sold under SKU E1500LFP+400W and variant 42918142804156. The exact option distinguishes one station plus two 200 W panel units from the one-panel 200 W choice. It was unavailable in the captured manufacturer JSON on October 25, 2026. Keep that selected option in the reference set despite the dated stock status; it is not a current availability guarantee.

Two panels, one unchanged power station

Pecron describes the E1500LFP V3 as a 1,536 Wh LiFePO4 station with 2,200 W rated AC output at 120 V and a 4,400 W peak for 10 ms. The two panels add 400 W of combined nameplate panel power, not 400 Wh of battery capacity. They do not change the station’s AC limit, battery storage, number of receptacles or voltage. A 2,300 W load still exceeds the published continuous rating; a larger number of panels cannot correct that mismatch. Nor does a 400 W kit imply 400 W of input every hour: solar rating is measured under defined conditions that are not a typical campsite or cloudy outage.

The selected SKU and offer title establish the 200 W rating and a count of two. They do not give the individual panel model. Pecron’s separate PV200 page documents a 200 W panel, but the bundle SKU does not say “PV200.” More importantly, the product page uses the same selected-option artwork for its 2×200 W and 2×PV300 choices. The image therefore is not a reliable model label. The listed nameplate wattage and quantity are based on the exact option title/SKU, not on guessing from the rendering.

Input headroom still needs a verified connection

The E1500 has a single XT60 solar port with a published 11–60 V range, 20 A maximum and 1,000 W maximum. Four hundred watts of panel nameplate sits below the 1,000 W ceiling, but that comparison alone does not demonstrate a supported two-panel array. The captured bundle record does not name the panels’ exact voltage/current characteristics, the adapter lead, or whether the manufacturer expects series or parallel wiring. A wrong arrangement can exceed voltage or current limits even if the watt total appears modest. The exact package should not be called plug-and-play on these sources alone.

At the same time, the kit’s panel rating is not wasted merely because a strict input plan is undocumented. A buyer can ask Pecron for the precise panel model and approved wiring/cable before using the two-panel set. Do not improvise a connector or combine this unknown panel with an older one based on wattage alone. A true series string adds panel voltages; parallel wiring adds currents, so exact specifications matter. The article does not claim any independent charge test, and no daily solar yield or refill time is promised.

How the answers should change your shortlist

The ordinary “panel supplied” choice and the advanced minimum of 400 W / two panels can identify this package. Increasing the requested panel wattage to 401 W should remove it. A 120 V AC requirement is met by the station; its battery is still 1,536 Wh and its rated output 2,200 W. A visitor who makes confirmed two-panel compatibility an essential condition should not get this result as a proven fit while exact panel identity, cable and topology remain unresolved. This is different from a softer preference for having more than one panel in the box.

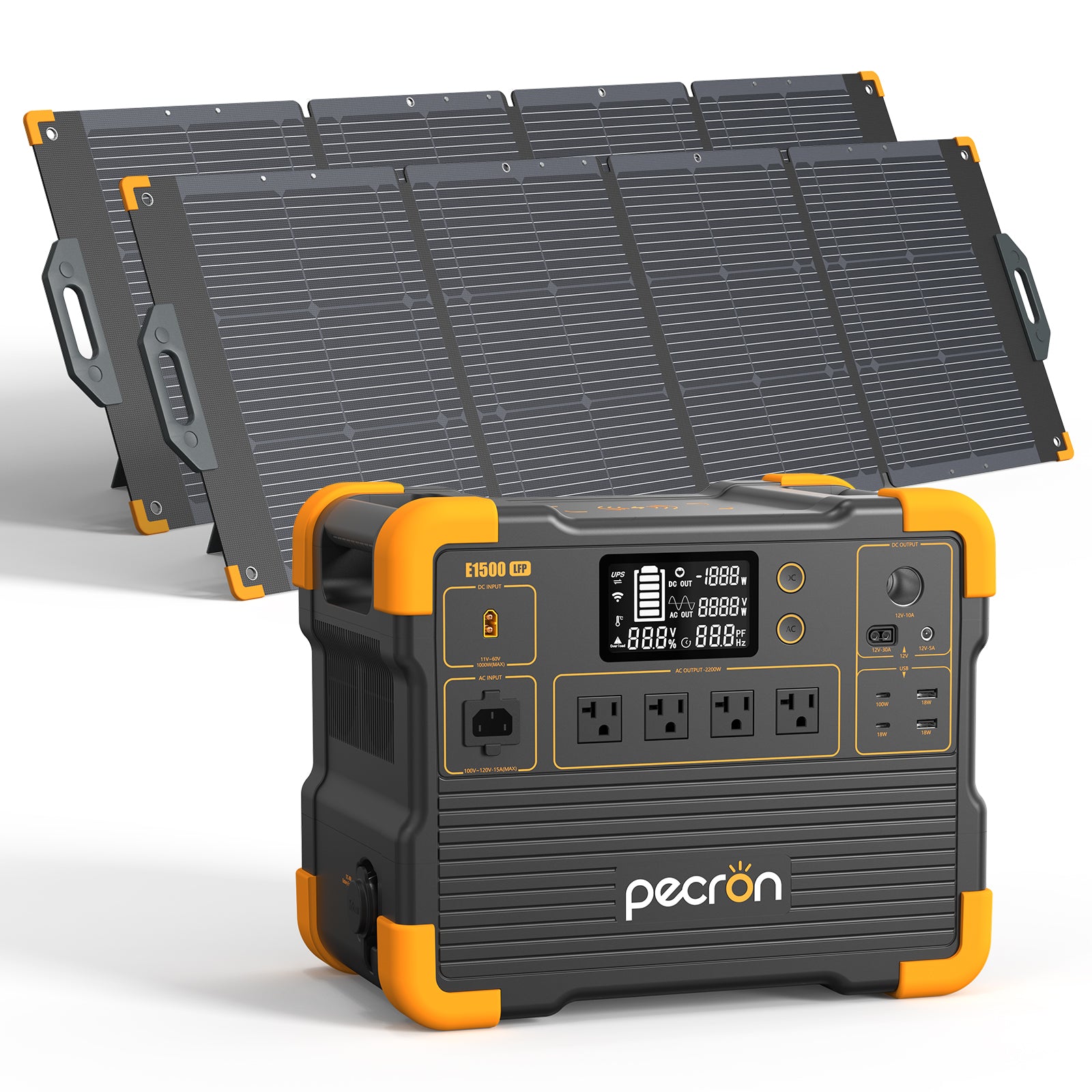

This option suits a buyer already planning around the E1500’s 1.5 kWh storage and 2.2 kW output who wants a larger nameplate panel provision than the one-panel selection, and who can verify the connection. Choose the one-200 W option if fewer panels and less set-up are more important; choose a PV300-specific option if a known panel model is useful, while still checking array and cable instructions. The standalone E1500 is simpler when you own a known-compatible panel. The product image is an official Pecron rendering associated with this selected product-page option; it is not a measurement or a reliable label for the exact panel model.
