Pecron E3800LFP with three EP3800-48V batteries review

Pecron · E3800LFP with three EP3800-48V batteries

Pecron E3800LFP with three EP3800-48V batteries review

This exact U.S. selection is SKU E3800LFP-3*EP3800-48V: one E3800LFP station plus three EP3800-48V battery modules. It is a way to raise storage around a single large 120 V inverter, not a way to obtain three additional inverters. The manufacturer nameplates add to 15,360 Wh, while the E3800 host remains rated at 4,200 W AC at 120 V.

What the third battery changes

The standalone E3800LFP starts at 3,840 Wh. Pecron’s EP3800-48V manual lists each battery at 3,840 Wh, so this selected option is 3,840 Wh plus three such modules. That 15.36 kWh total is nameplate arithmetic; the sources do not state usable AC energy for this exact combination. It is therefore a useful capacity tier for comparing offers, not a measured run-time promise. A refrigerator, pump, network gear or workshop load still has to fit within the host’s actual output and your own energy plan.

The important limit is that three expansion modules do not turn the host into a 12,600 W source. There is still one E3800 inverter, with 4,200 W rated AC output at 120 V. If the requirement is 240 V or split-phase power, this one-station selected SKU is the wrong configuration. Pecron describes a separate arrangement using two E3800 stations and a connection box; battery count alone does not create that capability.

Plan the equipment, not just the watt-hours

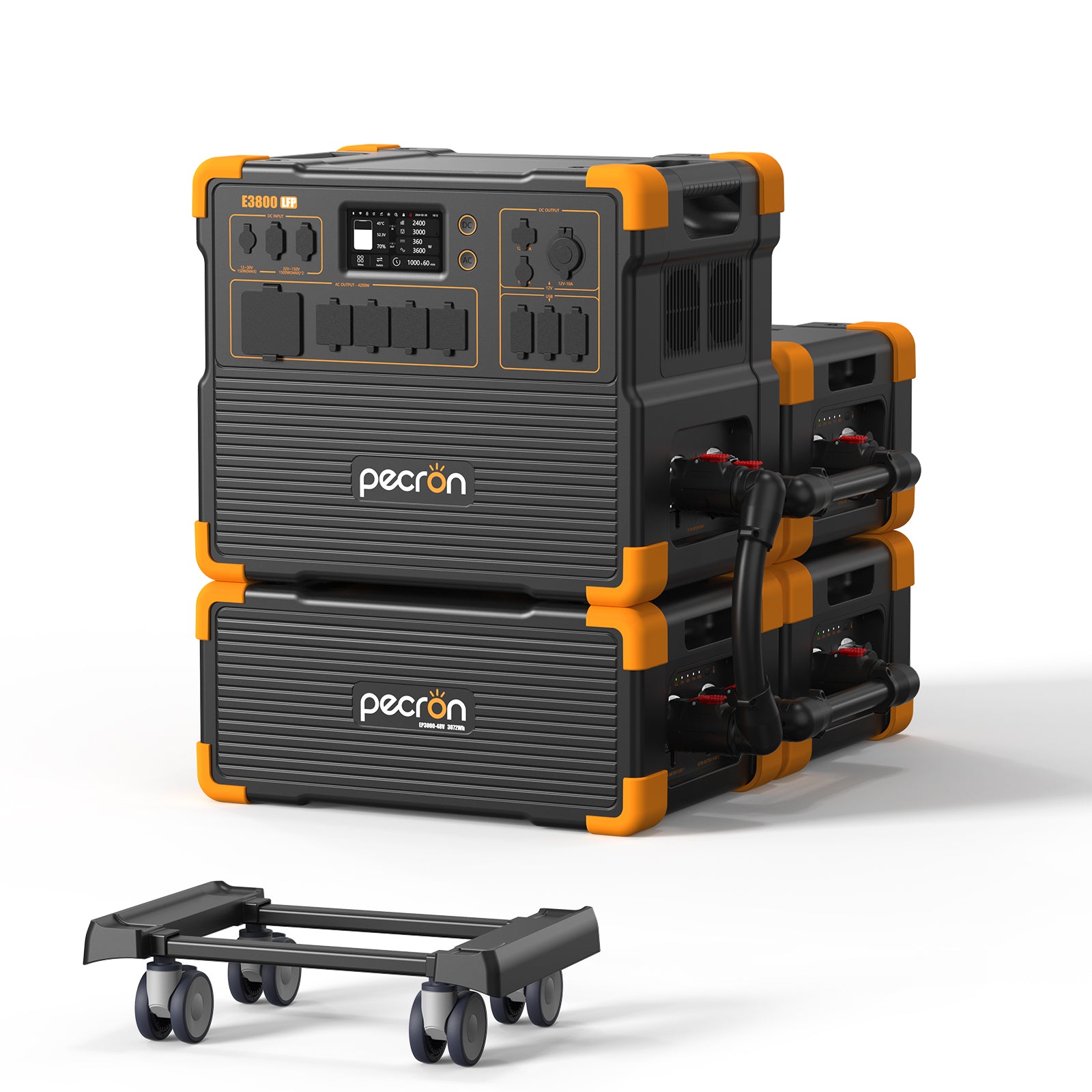

The manufacturer lists the host at about 87.3 lb and each EP3800-48V at about 66.8 lb. Adding the component weights gives roughly 287.7 lb before cascade leads, a cart or other accessories. The equipment may be positioned as separate modules, but this is not a grab-and-go station and the figure is not a claim that the pictured stack is a safe or required arrangement. The manual’s pack-order and stacking guidance matters. The official MJ32-style connection cable is needed for an expansion setup; neither the selected-option data nor the render proves that the exact cable or rolling cart is included.

This is most convincing when the location is known in advance: a backup area, a stationary work site or another place where you can plan the modules, cable route and available charging circuit. It is a poor fit if you need one person to move a complete system quickly or if the carrying weight of a station is your deciding constraint. The regular E3800LFP or one- and two-pack options reduce the installed mass substantially.

Solar and charging still need a separate plan

The E3800 documentation lists two XT60 solar inputs and up to 3,000 W combined, with a 32–150 V input window. Those are station limits, not included solar equipment. This exact battery SKU names no panels, so your array, leads and connection method must be selected separately and checked against the documented electrical range. The capacity of the batteries also does not make a panel charge faster than the host’s accepted input. Do not read the product render as proof of panel or cable contents.

Where it fits among E3800 options

The two-pack option totals 11,520 Wh; the three-pack selection adds one more 3,840 Wh module for 15,360 Wh. A four-pack bundle moves to 19,200 Wh but adds more weight, while the base station is the simpler choice when 3,840 Wh is enough. These are real storage differences rather than cosmetic finishes. Choose the lowest tier that meets a defensible nameplate need and leaves room for the loads you actually intend to support.

The archived U.S. selected-option JSON marked this variant available on October 25, 2026; that is only a capture-time observation, not a live stock check. Confirm the exact SKU, current box contents and cable before ordering. No price, field test, exact usable-energy figure or service-life result is assumed here.

Bottom line

The three-EP3800 E3800 is a high-storage, one-inverter configuration for buyers who need a documented 15,360 Wh nameplate tier and can accommodate nearly 288 lb of station-and-battery hardware. Its real strengths are the source-listed host output, compatible expansion family and larger stored-energy reserve. Its material limits are equally important: 120 V only, 4,200 W from one host, no included solar panels established, and uncertain cable/cart package details. Compare it with the four-pack option on capacity and site layout, not on a promise of more AC power.
