Pecron F5000LFP with 2 PV500 panels review

Pecron · F5000LFP with two PV500 panels

Pecron F5000LFP with two PV500 panels review

The selected U.S. offer “F5000LFP+ PV500*2” keeps the same F5000LFP station and adds two panels named PV500. The selected manufacturer option has its own variant ID and SKU, so this is a distinct package rather than a second battery version. Pecron’s panel page describes the PV500 as a 500 W bifacial portable solar panel; two panels therefore represent 1,000 W of combined nameplate arithmetic. Neither that total nor the illustrated two-panel layout predicts actual input in sun, or proves how the panels should be wired.

Choose it for the station, not a panel-count shortcut

The F5000LFP is a 5,120 Wh station with manufacturer-rated dual-voltage output, including up to 7,200 W at 240 V. It can be a candidate for an exact 240 V load plan when that load’s continuous and start-up requirements fit the published limits. At 120 V, Pecron lists up to 3,600 W. The panels do not change either output figure or the battery capacity. This is useful to keep in mind when browsing bundles: the two-panel option is not a larger battery, and “1,000 W solar” does not mean the station will deliver 1,000 W to appliances from the panels.

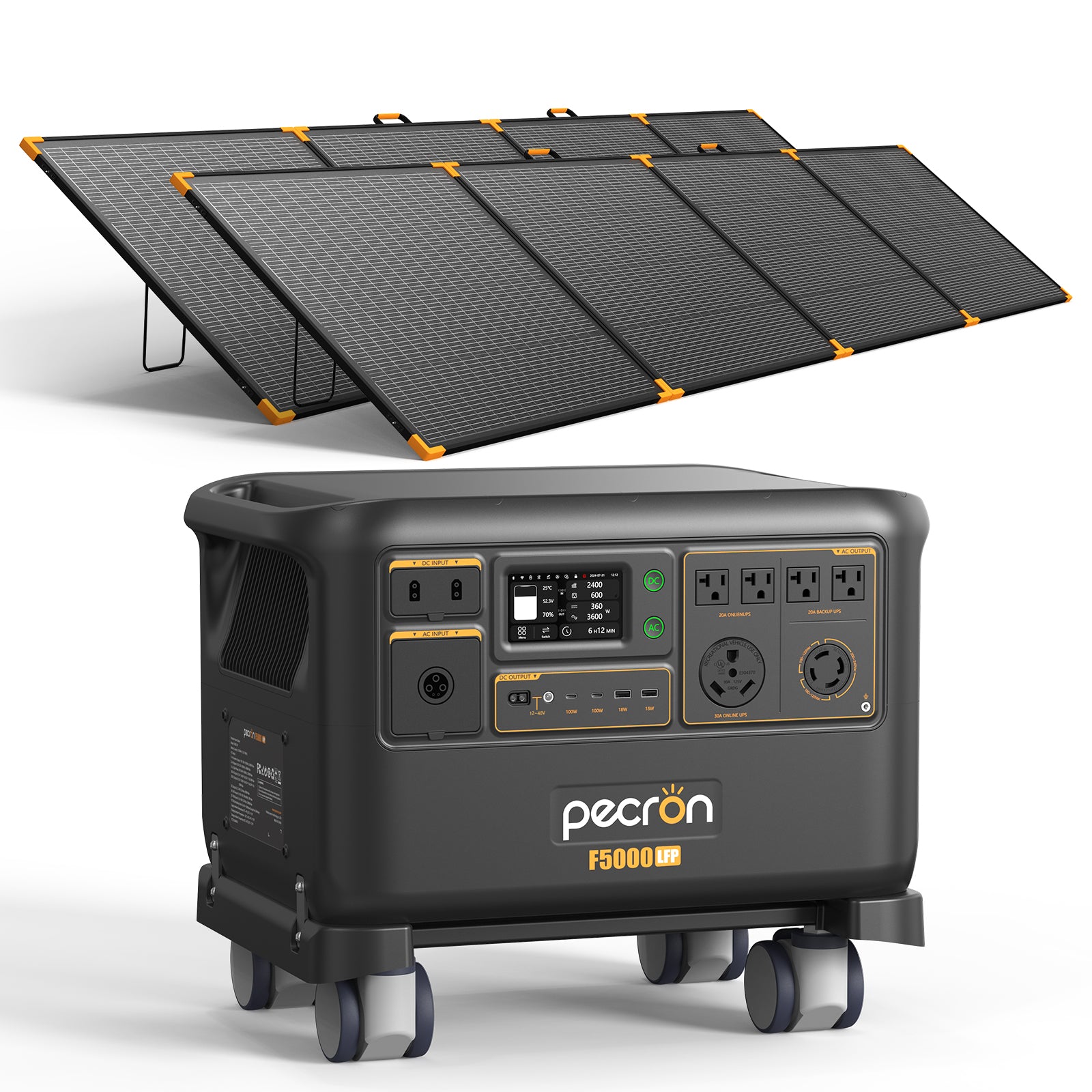

With the station itself listed at about 123.9 lb, this is a heavy household or vehicle-supported system even before adding the panels. The exact total carrying weight is unknown because the captured PV500 page does not supply a panel weight. Two separate folding panels also ask for more placement space and setup time than one. The bundle image visually shows two panels beside the F5000LFP; it is a manufacturer illustration, not a test of portability or proof of cable contents.

Why two panels may be a useful middle ground

Compared with the single-PV500 package, this option doubles the nominal panel count and nameplate watts. That may be attractive when you can expose more panel area during daylight, but the difference is about solar gear in the box—not station output, inverter capability, or stored energy. It sits below the 2,000 W nameplate arithmetic of the four-panel package and the 3,000 W or 4,000 W figures from the six- and eight-panel offers. Those totals are comparisons of labels only; they are not estimates of harvest or charge time.

The two-panel count is a practical reason to ask a more precise question before buying. If you expect to deploy both panels simultaneously, you need the PV500’s open-circuit and operating voltage/current values plus Pecron’s supported series/parallel configuration and the exact adapter list. The F5000 manual identifies two solar inputs, each with a 30–180 V range and up to 3,200 W, while the station page lists a 5,800 W ceiling for a unit without an expansion battery. That tells you where the station limits sit; it does not fill in missing PV500 electrical specifications.

Solar limits deserve a real wiring plan

Pecron’s F5000 manual also lists two single-port XT60-to-MC4 solar leads in the station packing list. That is useful evidence about the station’s included charging leads, but it does not establish that a PV500 terminates in MC4, whether the exact bundle includes the required connector or splitter, or whether all supplied panels can be used together. Do not count two distinct panel images as an electrical diagram. The reviewed source set does not verify the bundle’s completed connection plan.

Accordingly, a general solar-input requirement and an included-panel requirement are supported by the station specifications and exact offer title. A hard need for both supplied panels to charge this station together is not. Unknown panel voltage or package cabling should not quietly pass as compatible, even though the listing identity itself is clear. Ask the manufacturer for written PV500 electrical specs and a diagram tied to this exact F5000 option if solar use is essential.

Match it to the job

This package is a better starting point than the one-panel version for someone who values a 1,000 W panel nameplate total and has a defined site to deploy two folding units. It is less compelling for a buyer who only needs the F5000’s high-voltage battery backup and would rather select panels separately after checking compatibility. It is not a complete home-interconnection package: a transfer switch, panel, branch-circuit work, and required permits are separate questions, not implied by dual-voltage output.

In the ordinary questionnaire, choosing 240 V and a 7,200 W minimum can keep the F5000 class in view; panel-in-box and solar-input choices distinguish this offer from the bare F5000. An advanced 1,000 W/ two-panel threshold describes the selected package’s nameplate inventory. Requiring a documented all-panel connection changes the answer: this option should be left out until that configuration is confirmed. If your solar need can be met by a smaller panel package—or if storage and outlet ratings matter more—compare one PV500, the four-panel option, and the F5000 without panels rather than assuming more panels are always better.
