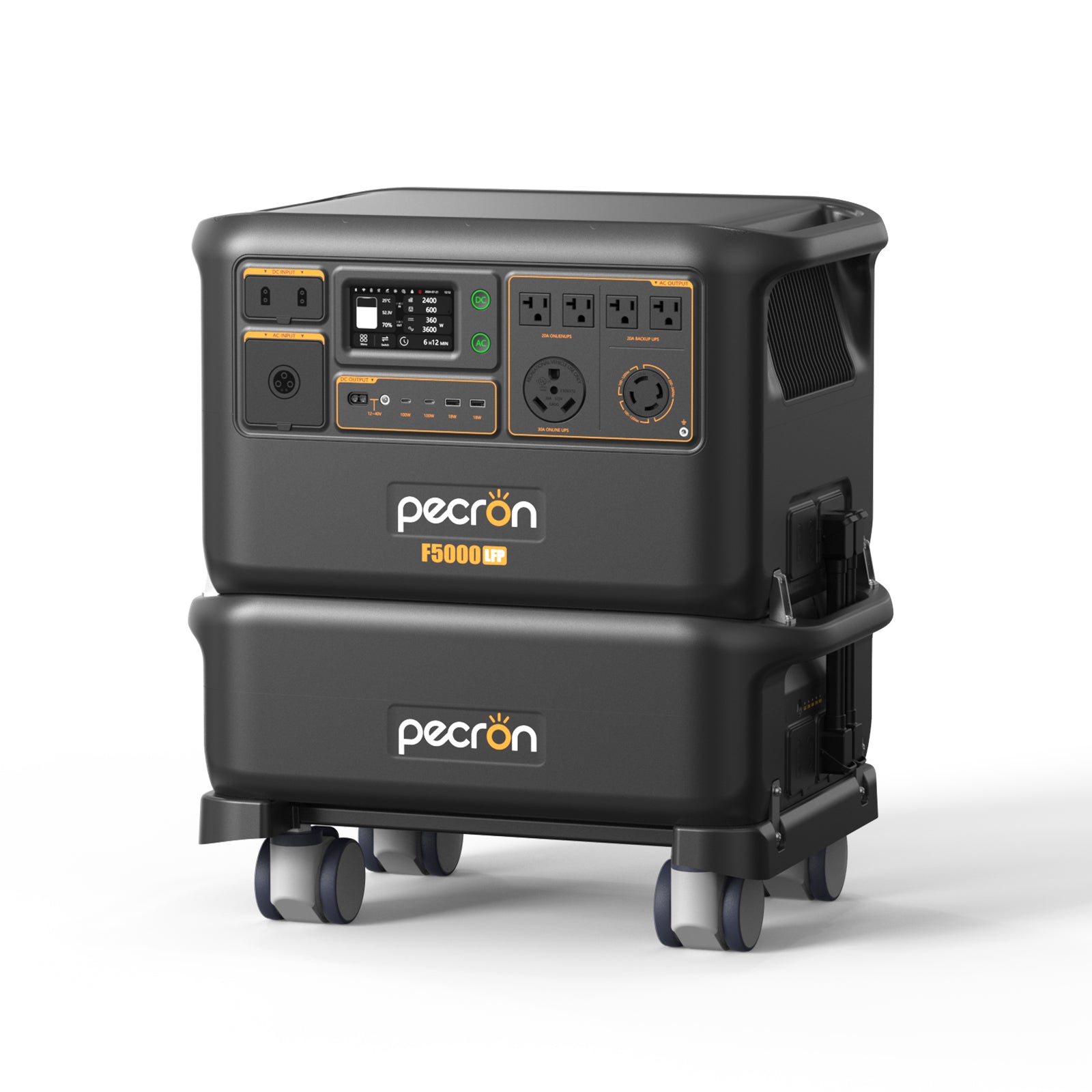

Pecron F5000LFP with 1 FP5000-48V battery review

Pecron · one FP5000-48V expansion-battery option

Pecron F5000LFP with one FP5000-48V review

This exact U.S. Pecron listing is the F5000LFP host paired with one selectable FP5000-48V expansion-battery unit. The option title and retailer SKU identify the single add-on; this is not the base-station selection and it is not one of the PV500 solar-panel packages. The difference is in what is bundled for storage expansion, not in a new inverter or a different set of AC outlets.

A modest step into the expansion system

One additional battery is the least complicated way to buy into the named expansion family at checkout. It suits a buyer who has already decided that the F5000LFP is the right 120/240-volt host and wants one compatible expansion unit included rather than relying on a later accessory purchase. The station itself is a substantial fixed-backup product: its own listed nameplate capacity is 5,120 Wh, and the manufacturer rates its 240-volt output as high as 7,200 W. Those host specifications remain useful context, but they do not tell us the exact total capacity of this combined option.

That distinction matters. Pecron’s page gives the F5000 family a headline expansion ceiling of up to 35.8 kWh, while the captured exact option names one FP5000-48V unit. The selected-option data does not provide a separate watt-hour rating for that battery or an exact total for this bundle. I would not multiply the model name, assume a pack capacity, or promise a runtime from it. If a minimum total storage figure is essential, obtain a current written specification for the exact host-plus-pack configuration before purchase.

Capacity changes; rated output does not

The F5000LFP remains the component that determines the outlet plan. Pecron lists two 120-volt output groups rated at 3,600 W each and dual-phase 200–240-volt output up to 7,200 W. Those group totals are not a per-receptacle promise. A single extra battery should be viewed as additional stored energy for the compatible system, not as an upgrade to the station’s AC output, a way to start a larger appliance, or a second independent station. Check the appliance nameplates, branch limits, and the exact outlet diagram before planning simultaneous loads.

For home backup, the 240-volt output has an important caveat: the product page and manual describe a floating neutral while the station is operating on battery. A transfer switch, neutral arrangement, grounding method, and household connection need to be designed for the installation and local code. Do not backfeed a wall outlet. Have a qualified electrician decide whether this station and the intended transfer equipment are appropriate for your panel and loads.

Solar and handling are separate questions

This battery option does not list a PV500 panel in its selected title. The F5000 manual documents the station’s two XT60 solar inputs and their voltage/current limits, but that does not establish the input electrical data of the FP5000-48V battery or the wiring of any outside array. The product page quotes different solar-input ceilings for a standalone station and a system with an extra battery; it does not provide a configuration-specific diagram for every pack count. Confirm the exact supported charging setup instead of treating a general family maximum as an automatic promise for this package.

The base station is listed at about 123.9 lb and has wheels. That is already a relocation task rather than a casual carry-in; the exact combined weight of the station and expansion battery is not given in the option record. Plan where the equipment will stay, how it will be rolled over thresholds, and who will install the required connections. The battery option should not be chosen for backpacking or frequent vehicle transfers.

Who should choose this exact option?

Choose the one-pack listing when you want one F5000LFP and one named FP5000-48V unit together, your power demand fits the host’s actual output plan, and you are comfortable verifying storage and installation details before relying on the system. Choose the standalone listing if you do not need an expansion battery in the original order. If you already know that one add-on is not enough, compare the exact two-, three-, four-, and six-pack options rather than treating this SKU as the same configuration. In every case, use the selected variant’s current itemized contents—not a promotional image or an old price snapshot—as the final checkout check.
