Jackery Explorer 5000 Plus 10 kWh with Smart Transfer Switch review

Explorer 5000 Plus 10 kWh with Smart Transfer Switch

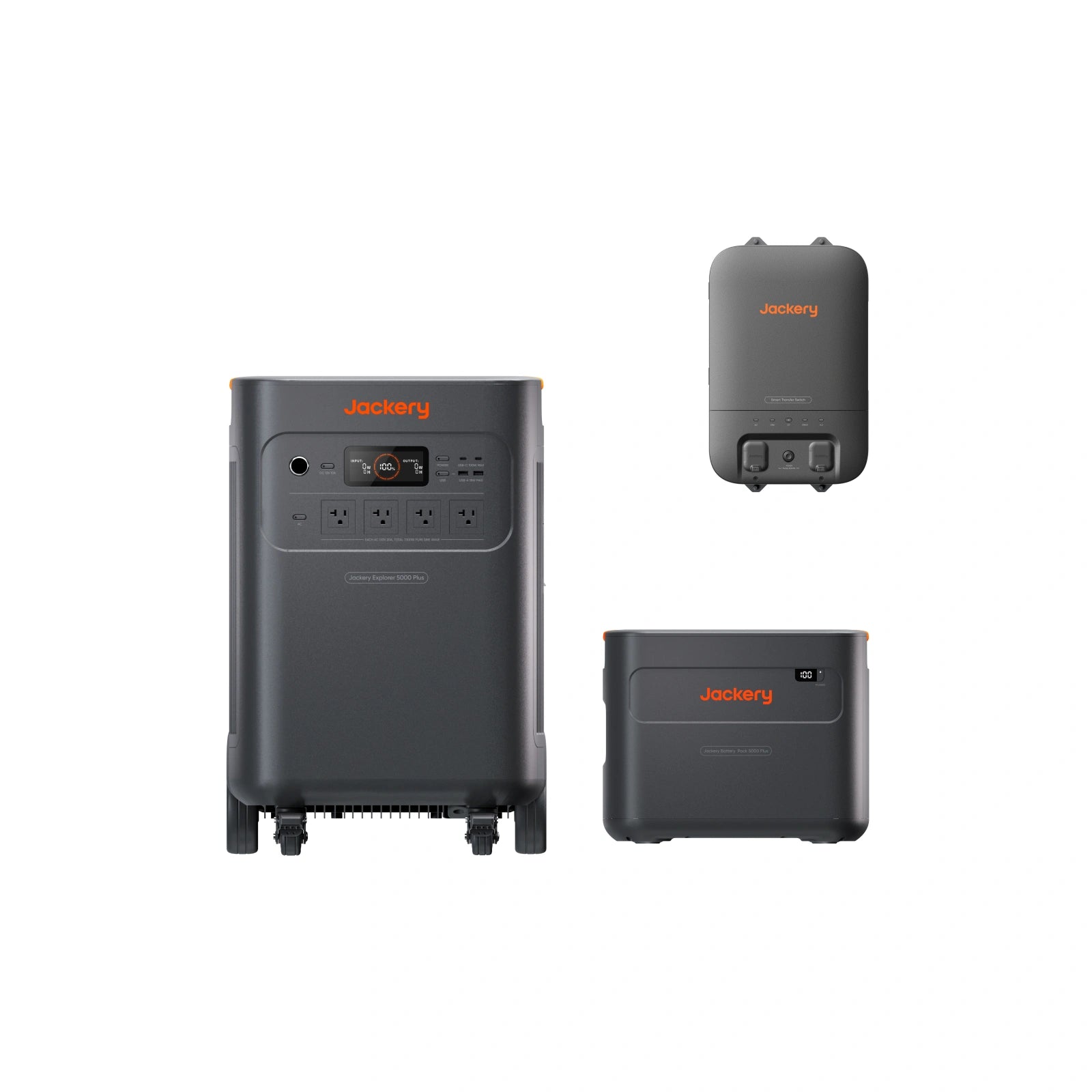

SKU 60-505000-US00013 combines one Explorer 5000 Plus JE-5000A station, one Battery Pack 5000 Plus and Jackery's Smart Transfer Switch. The two battery nameplates—5,040 Wh in the station and 5,040 Wh in the pack—total 10,080 Wh in a supported one-station plan. The station output remains one unit's 7,200 W maximum; stored energy and inverter power are different limits. This package provides both an expansion battery and household transfer hardware, but no solar panel. If a panel is essential, do not assume one arrives just because the station accepts solar charging.

Expansion adds storage, not a second inverter

The exact compatible pack is JBP-5000A, a 5,040 Wh LiFePO4 battery. Jackery says one Explorer 5000 Plus can support up to five packs, for a maximum 30,240 Wh system capacity. That is a separate expansion capability, not the box contents of this offer. The station manual says to turn both station and pack off before connecting them and maintain at least 200 mm between units. The pack does not provide household AC receptacles by itself; it extends the supported station system. It weighs about 81.6 lb. Combined with a 134.5 lb station, this is not a one-piece portable battery. Jackery does not publish a reliable total weight for the complete station, pack and switch package, so plan for multiple heavy components and safe placement rather than guessing a shipping weight.

Smart Transfer Switch requires a home plan

The included device is a Smart Transfer Switch, not a manual transfer switch. Jackery describes up to 12 circuits in a 120 V arrangement or 6 in a 240 V arrangement; a qualified electrician must determine what is appropriate for the home's service and panel. Ask the installer to review selected circuits, panel compatibility, grounding, neutral, load balance, cable routing and local code. It should not be connected through an improvised cable or treated as a plug-in appliance. The switch does not mean every circuit is backed up, nor does the package create an unlimited home battery.

The maker describes an automatic transfer feature, but its timing depends on the documented configuration and whether the function is enabled. The separate station online UPS mode can provide 0 ms only from the NEMA 5-20 receptacles and is capped at 3,600 W. Standard backup transfer is under 20 ms. Those claims do not establish that every connected device rides through a transfer. Sensitive electronics need an appropriate independent UPS or a compatibility test under the intended setup. Four NEMA 5-20 outputs and the larger L14-30R/14-50 outputs have different functions even though the station's total AC rating is large.

Input and temperature limits still matter

The manual lists 7,200 W maximum total output and 14,400 W surge for a single JE-5000A. Surge is not a continuous rating. In the specified -15°C to -10°C temperature band, AC output drops to 3,600 W. Solar uses a high-PV MC4 path at 135–450 V/15 A/up to 4,000 W, or two low-PV DC 8 mm ports at 16–60 V, 10.5 A per port and 1,200 W combined. This exact 10 kWh SKU lists no solar panels. If panels are added, check the cable and array against the separate input paths rather than inferring a full charging plan from a 4,000 W headline.

Station charging is specified at 0°C to 45°C and discharging at -15°C to 45°C. The manual calls for indoor use and warns against rain and humidity. Keep the station, battery pack and switch dry and protected. A 10,080 Wh nameplate does not promise that much AC energy at the outlets. Actual runtime depends on conversion losses, the load, temperature and the station's operating state; this review does not claim a measured outage duration.

When this bundle fits

This package suits a buyer who wants one station, an included expansion pack and Smart Transfer Switch for an electrician-designed 120/240 V backup plan. Compare the station-plus-switch-only option if 5,040 Wh is enough. Compare the 2×500 X plus switch package if panels matter more than extra battery storage; that exact offer inherits the panel current caveat. The 20 kWh Home Backup Kit contains two stations and two packs and supports a different paired 240 V plan. For camping or occasional portable power, the 134.5 lb station plus an 81.6 lb pack is cumbersome; a smaller station may fit better. Decide from a load list, circuit plan, and installation details. No claim here substitutes for electrician review or a runtime test.

Sources: exact 10 kWh package option, JE-5000A manual, JBP-5000A manual, and switch information.
