Jackery Explorer 5000 Plus review

Jackery Explorer 5000 Plus review

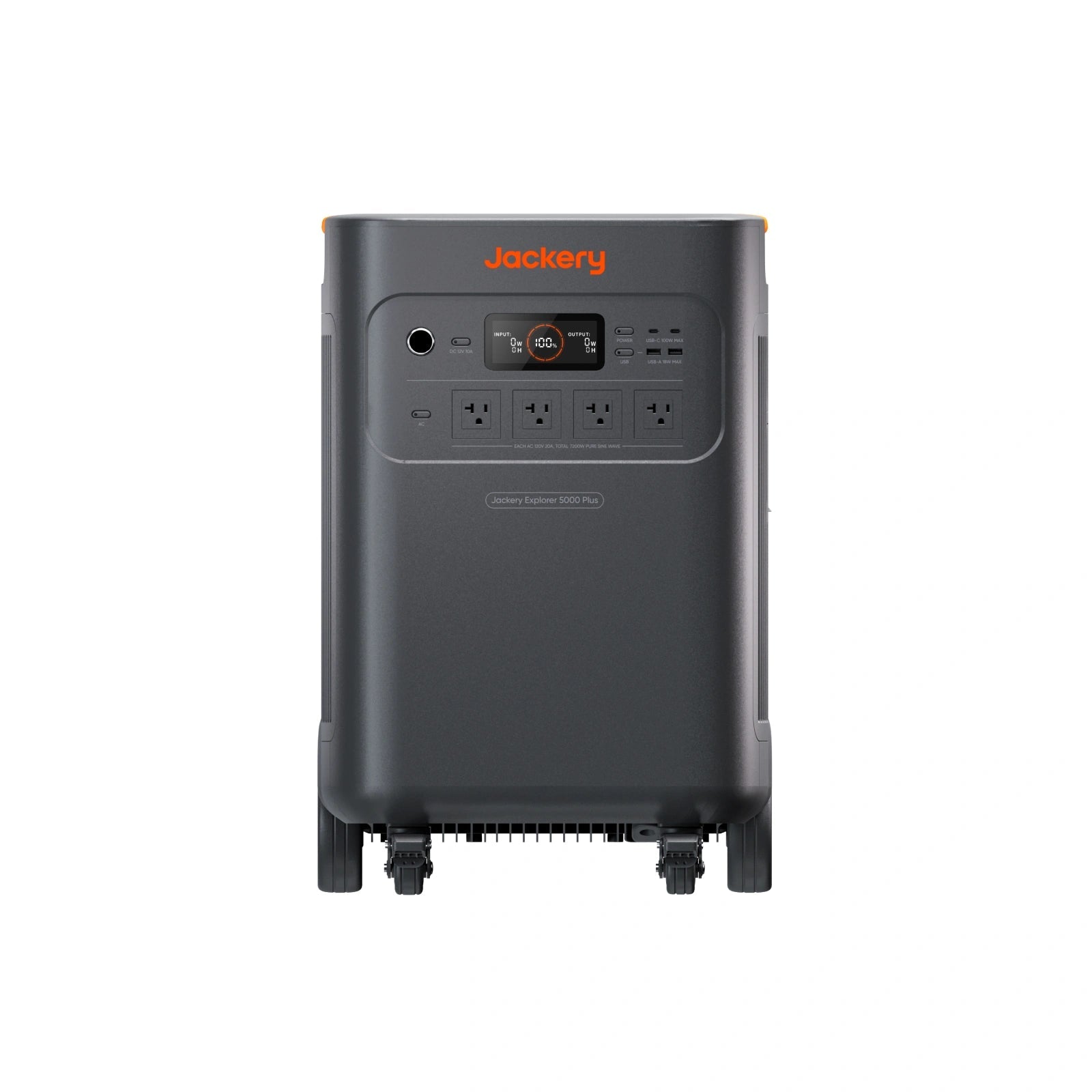

The Explorer 5000 Plus JE-5000A is a large, wheeled, 5,040 Wh LiFePO4 station rated for up to 7,200 W AC. The headline wattage is useful only when it matches the loads and exact output plan: this is a 120/240 V-capable unit, not a lightweight 120 V camping battery, and it weighs about 134.5 lb before an expansion pack or home wiring equipment is considered. Its appeal is substantial household-scale storage and several connection routes; its cost is floor space, handling, and electrical planning.

The station-only SKU

The direct U.S. offer with SKU 21-0001-000288 lists one station, an AC charging cable, MC4 wrench and documentation. It does not include SolarSaga panels, a Battery Pack 5000 Plus, or a Smart Transfer Switch. Jackery sells separate offers that add two SolarSaga 500 X panels, a battery pack, or a switch. A 4,000 W solar-input ceiling describes what the station can accept under specific conditions; it is not an in-box panel, compatible cable, nor a promise of array output. If your purchase depends on a solar panel, select the exact reviewed panel bundle or verify the cable and connection path for a separate array.

The station measures 16.5 by 15.5 by 25 inches. Wheels and a pull handle help on suitable floors, but 134.5 lb is still difficult to lift into a vehicle or up stairs. Think through its delivery path, ventilation clearance, and dry indoor location before choosing it. The manual rates its LiFePO4 cells for 4,000 cycles to at least 70% capacity. That is a published cycle-life endpoint, not a field lifespan guarantee or an estimate of AC energy available to your specific appliances.

Output and solar are separate limits

The manual lists 7,200 W maximum total AC output and 14,400 W surge. Four NEMA 5-20 outlets are 120 V; the larger L14-30R and 14-50 connectors serve other supported loads and split-phase arrangements. Do not treat surge as continuous power, or assume every outlet can independently supply the headline maximum. In the specified -15°C to -10°C ambient band, output is reduced to 3,600 W. Online UPS mode can provide 0 ms only at the NEMA 5-20 outlets and is limited to 3,600 W; ordinary backup UPS transfer is under 20 ms. If your device has a strict transfer requirement or needs a particular receptacle, check that plan and test it rather than relying on the general wattage.

Solar is divided between a high-PV MC4 input, rated 135–450 V at up to 15 A and 4,000 W, and two low-PV DC 8 mm ports, rated 16–60 V and 10.5 A each, with a 1,200 W combined ceiling. Those are two different electrical paths, not a single continuous 16–450 V input. Five compatible Battery Pack 5000 Plus units may be added to one station for up to 30,240 Wh nameplate system capacity, but expansion does not increase inverter output. The manual says to power both devices off before connecting a pack and to maintain at least 200 mm spacing.

Household transfer and placement

The Smart Transfer Switch is optional and not included in this station-only SKU. It is a smart household transfer device, not a manual transfer switch or a plug-in strip. Jackery describes up to 12 120 V circuits or 6 240 V circuits, depending on the electrical design. A qualified electrician should verify service, panel compatibility, selected circuits, load limits and local code. A switch is not a promise to support every circuit in the home, and an included switch in another SKU does not change the battery or station rating.

The manual says indoor use and warns against rain and humidity. Keep the station and any connections dry and sheltered despite broader marketing language about the enclosure. Charging is specified from 0°C to 45°C and discharge from -15°C to 45°C. Nameplate capacity is not guaranteed AC energy after inverter conversion. Actual runtime depends on the equipment, startup loads, temperature, state of charge and how loads are operated; no runtime was measured here.

Who should compare another exact offer?

Choose the standalone version when you already own compatible solar equipment, intend to add panels later, or want to defer home-transfer wiring. Compare the two-panel 500 X package if named panels need to arrive now; check its panel-current caveat before planning full-rate charging. Compare the 10 kWh Smart Transfer Switch bundle if both an extra pack and switch are essential. The 20 kWh Home Backup Kit contains two stations and a different paired plan. A smaller 1–2 kWh model may be more sensible if you need occasional portable power or cannot safely handle this unit. This is a source-based assessment, not an independently tested sample or measured runtime.

Sources: Jackery U.S. offer page, JE-5000A manual, and Smart Transfer Switch information.
