Jackery HomePower 3600 Pro Max with Manual Transfer Switch review

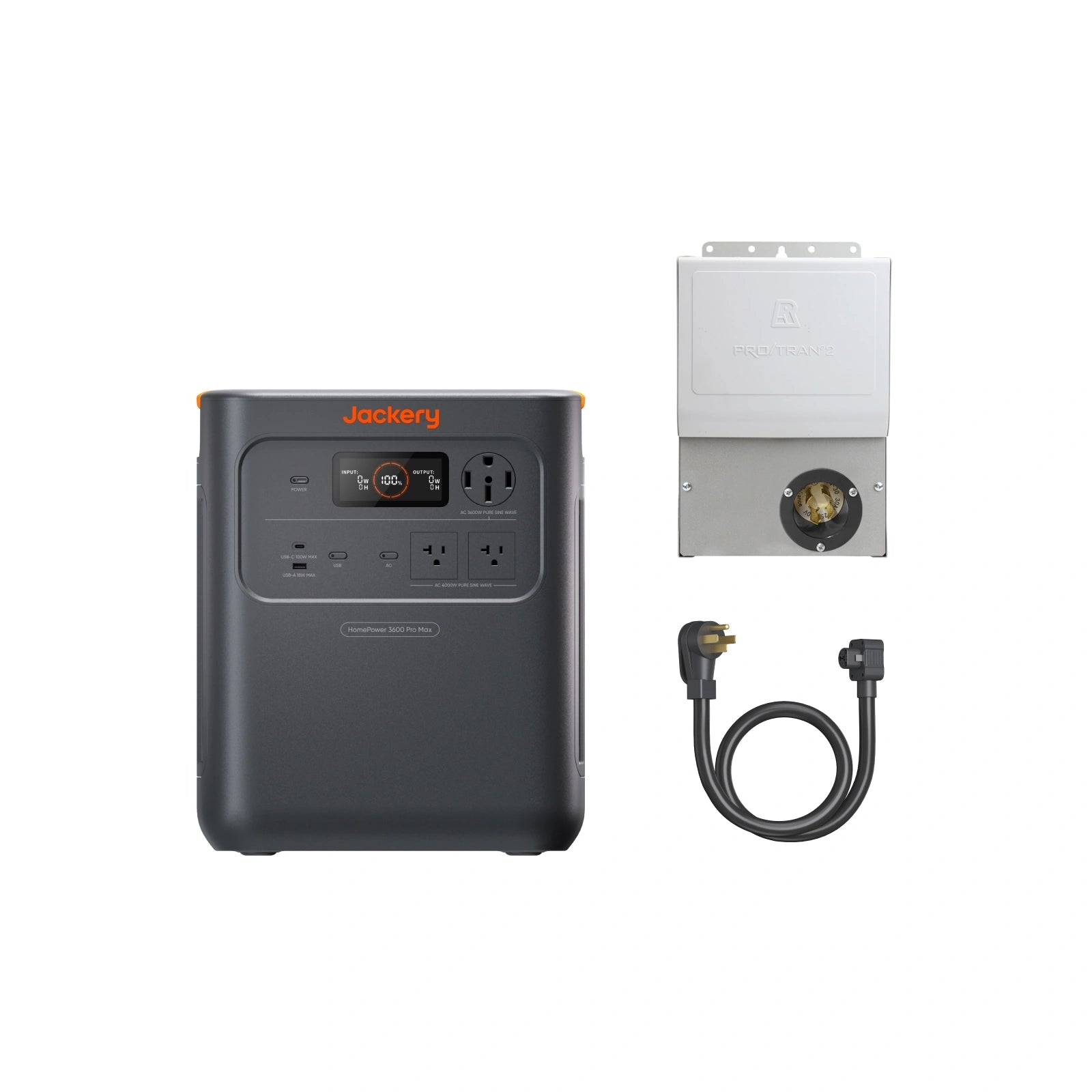

SKU 60-360000-US00475 bundles one Jackery HomePower 3600 Pro Max (JHP-3600C) with a Manual Transfer Switch, a 40A charging cable and the station's AC charging cable. Unlike the standalone station, this is a route to connecting selected household circuits through the included transfer equipment. It does not include a solar panel or expansion battery. The bundle is relevant when the hard shopping need is more than a portable outlet—but the included switch is not a do-it-yourself guarantee of a safe home installation.

What the station can deliver

The one station has a 3,584 Wh LiFePO₄ battery and 4,000 W rated AC output, with an 8,000 W surge peak. The manual lists two NEMA 5-20R receptacles, each up to 2,000 W at 120 V, and a NEMA 14-50R for 240 V rated at 4,000 W. These are shared station limits, not a 50 A battery output. A transfer switch only feeds the branch circuits selected and installed for it. Add their continuous loads, account for motor starts and check the circuit/breaker design with a qualified electrician. This kit does not create unlimited “whole-house” power, and the inverter rating is not increased just because the switch is in the box.

Jackery's 40A cable supports the separate 240 V input/charging route described in the station manual; it is not a household-panel cable for an unqualified user to wire. The 120 V AC input is rated up to 15 A and the bypass output under 120 V input is only 1,440 W. Above that bypass ceiling the battery contributes; if it runs out, the connected load may shut down. Treat the 4,000 W battery output and 1,440 W 120 V pass-through ceiling as different modes.

Installation, timing and solar limits

The included transfer switch must be installed by a qualified electrician in accordance with local electrical requirements. The supplied instruction set warns of fire, shock and injury hazards from improper installation; it describes breaker/branch-circuit matching and special handling for multi-wire and 240 V circuits. Have the installer confirm the actual switch model, branch-circuit plan and connector/cable compatibility before relying on the kit. The product page does not expose an exact MTS model number or circuit count in the selected option, so do not assume a specific number of available home circuits from the bundle name.

The station's manual says UPS transfer occurs within 10 ms and warns that 0 ms equipment is unsupported. That is the manufacturer's stated changeover, not a measured guarantee for every connected device or transfer-switch layout. The station manual also asks users to test device compatibility. A computer or appliance that cannot tolerate a transfer gap needs its own manufacturer guidance and testing; zero-millisecond need should exclude this configuration.

Solar remains an optional route rather than a box item in this SKU. Two DC8020 inputs accept 16–60 V, 12 A each and up to 1,200 W combined. The manual says the two parallel channels must use the same panel model and quantity, and that car charging and solar charging cannot be simultaneous. A SolarSaga 500 X configuration is a different package. The finder should not treat MTS inclusion as proof that a panel is also supplied or that the entire home can be powered at a chosen duration.

Who should choose the MTS package?

This exact bundle fits a household that has identified a modest list of critical branch circuits, wants the transfer switch and 40A cable in the order, and will use professional installation. It is a poor fit for renters, people who only need USB or outlet backup, or anyone expecting to plug the MTS into a wall and have the whole house connected. Select “manual transfer switch included” in the finder to distinguish it from the standalone and solar-only packages. If duration matters more than a panel connection, compare the one-expansion-battery package; if solar hardware must arrive with the switch, use the package that includes both and account for its panel-current caveat.

Sources: Jackery product page; HomePower 3600 Pro Max manual; Manual Transfer Switch manual.
